General Motors GM-47825 Transmission Control Solenoid Test Plate Assembly
General Motors GM-47825 Transmission Control Solenoid Test Plate Assembly
Kent-Moore Tool Number: DT-47825
The GM-47825 is specifically designed for General Motors (GM) vehicles used to test the functionality of the transmission control solenoids in GM transmissions such as the 6L45, 6L50, 6L80, 6L90, 6T70, and 6T75.

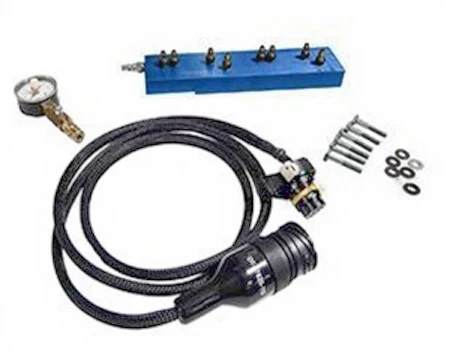

The GM-47825 ToolĀ assembly includes several components, including the GM-47825-1 test adapter plate, GM-47825-2 pressure gauge, and GM-47825-10 adapter harness. These components are used to connect to the control solenoid valve body assembly and allow air to be charged into the solenoid ports.
To use the GM-47825 test plate assembly, the appropriate adapter harness is connected to the transmission electrical harness and the control solenoid connector. The Tech 2 tool is then used to systematically actuate each solenoid, and the pressure gauge is used to check for a pressure reading. This process helps determine if all solenoids are functioning correctly.
The assembly includes a case for storage and transport, as well as the GM-47825-10 adapter harness for the 6L45, 6L50, 6L80, and 6L90 transmissions. However, the adapter harness (GM-47825-20) for the 6T70 and 6T75 transmissions is not included and must be ordered separately.
For the General Motors Tools Catalog, click here
Looking for General Motors Specialty Tools?
Rest assured, we're here to guide you. If you can't find the GM car repair tools you're looking for in our catalog, please don't hesitate to contact us. Our dedicated and knowledgeable team is ready to assist with any inquiries and help you find the right tool to meet your needs. You can reach us directly at (909) 334-4400. Tillman carries the broadest online inventory of automotive tools.
Wide Selection of Tools:
Do you need hard-to-find quality mechanic tools, high-end electrician tools, auto body repair tools and supplies, or forestry tools at affordable prices? Look no further! With FREE shipping on selected items, our store has everything you need. Whether you're an authorized repair shop, an independent repair shop, or a DIY enthusiast needing specialty automotive tools, hand tools, or equipment, we have you covered. Our selection includes parts and specialty tools for Harley-Davidson, Ducati, and Suzuki, ensuring the job is done correctly.
Original: $1,609.99
-65%$1,609.99
$563.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
General Motors GM-47825 Transmission Control Solenoid Test Plate Assembly
Kent-Moore Tool Number: DT-47825
The GM-47825 is specifically designed for General Motors (GM) vehicles used to test the functionality of the transmission control solenoids in GM transmissions such as the 6L45, 6L50, 6L80, 6L90, 6T70, and 6T75.
The GM-47825 ToolĀ assembly includes several components, including the GM-47825-1 test adapter plate, GM-47825-2 pressure gauge, and GM-47825-10 adapter harness. These components are used to connect to the control solenoid valve body assembly and allow air to be charged into the solenoid ports.
To use the GM-47825 test plate assembly, the appropriate adapter harness is connected to the transmission electrical harness and the control solenoid connector. The Tech 2 tool is then used to systematically actuate each solenoid, and the pressure gauge is used to check for a pressure reading. This process helps determine if all solenoids are functioning correctly.
The assembly includes a case for storage and transport, as well as the GM-47825-10 adapter harness for the 6L45, 6L50, 6L80, and 6L90 transmissions. However, the adapter harness (GM-47825-20) for the 6T70 and 6T75 transmissions is not included and must be ordered separately.
