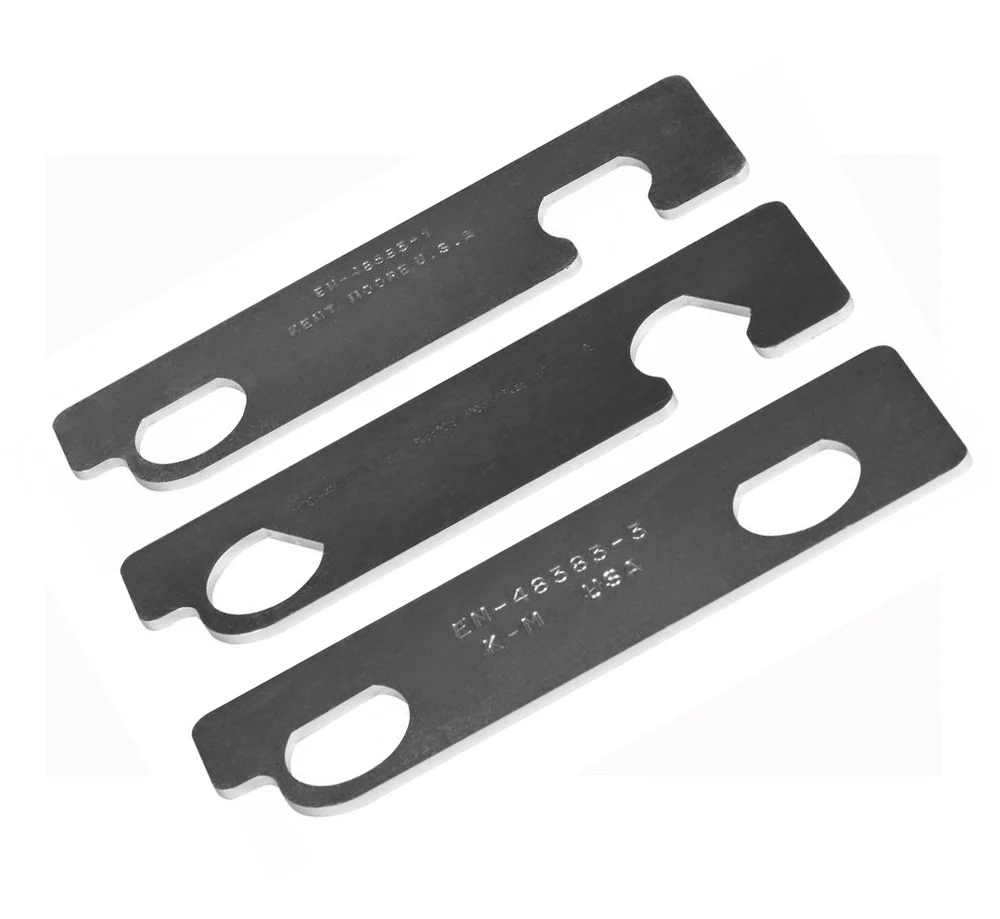

General Motors GM-48383 Camshaft Retaining Tool

General Motors GM-48383 Camshaft Retaining Tool

General Motors GM-48383 Camshaft Retaining Tool

The camshafts must be held at TDC to properly set timing, especially once the inner timing chain is set. Both camshafts on each head must be held in time to allow either head to turn. The camshafts on the left head must be held while timing the camshafts on the right head. During this procedure, the left camshafts are under spring pressure, which can cause the cams to turn, leading to misfiring of the engine.

On the left head, GM-48383-1 is installed to hold the cams, and the timing is set according to published service information. When the engine is at the second timing position to set the right head chain, GM-48383-2 is installed to hold the left head cams, and GM-48383-3 is installed on the right head cams. Both GM-48383-1 and GM-48383-2 are slotted to allow for their installation over the SIDI drive portion of the camshaft in future applications. Failure to use GM-48383 can result in incorrect timing, leading to engine damage.Ā

Similar to EN-48383 & OTC 6691

For the General Motors Tools Catalog, click here

Looking for General Motors Specialty Tools?
Rest assured, we're here to guide you. If you can't find the GM car repair tools you're looking for in our catalog, please don't hesitate to contact us. Our dedicated and knowledgeable team is ready to assist with any inquiries and help you find the right tool to meet your needs. You can reach us directly at (909) 334-4400. Tillman carries the broadest online inventory of automotive tools.

Wide Selection of Tools:
Do you need hard-to-find quality mechanic tools, high-end electrician tools, auto body repair tools and supplies, or forestry tools at affordable prices? Look no further! With FREE shipping on selected items, our store has everything you need. Whether you're an authorized repair shop, an independent repair shop, or a DIY enthusiast needing specialty automotive tools, hand tools, or equipment, we have you covered. Our selection includes parts and specialty tools for Harley-Davidson, Ducati, and Suzuki, ensuring the job is done correctly.

$95.99
General Motors GM-48383 Camshaft Retaining Toolā€”
$95.99

Product Information

Shipping & Returns

Description

General Motors GM-48383 Camshaft Retaining Tool

The camshafts must be held at TDC to properly set timing, especially once the inner timing chain is set. Both camshafts on each head must be held in time to allow either head to turn. The camshafts on the left head must be held while timing the camshafts on the right head. During this procedure, the left camshafts are under spring pressure, which can cause the cams to turn, leading to misfiring of the engine.

On the left head, GM-48383-1 is installed to hold the cams, and the timing is set according to published service information. When the engine is at the second timing position to set the right head chain, GM-48383-2 is installed to hold the left head cams, and GM-48383-3 is installed on the right head cams. Both GM-48383-1 and GM-48383-2 are slotted to allow for their installation over the SIDI drive portion of the camshaft in future applications. Failure to use GM-48383 can result in incorrect timing, leading to engine damage.Ā

Similar to EN-48383 & OTC 6691
